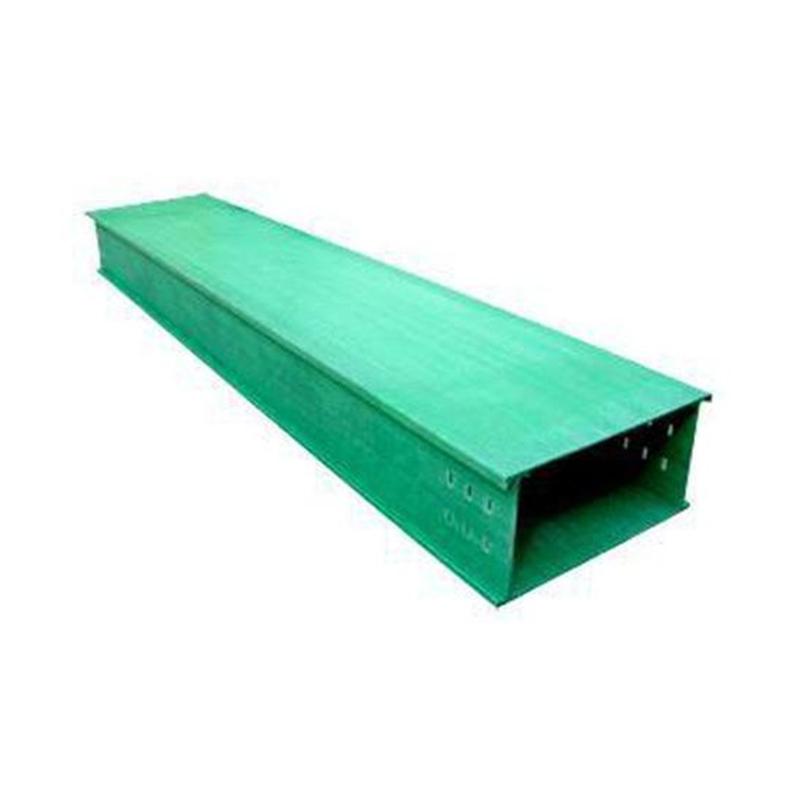

Cable Tray KC10

KC10 Cable trough box is a glass fiber reinforced plastic cable trough box, which is made of high-flame retardant polyester and high-density glass fiber. The product has the characteristics of good insulation, high strength, corrosion resistance, acid and alkali resistance, aging resistance, fire and flame retardant, good environmental adaptability (-50℃-60℃), odorless, and light weight. This product is only 1/4 the weight of the steel cable trough and 1/10 the weight of the cement cable trough. It is easy to install, low cost, long service life, and has the anti-theft function. All technical indicators are in line with the relevant technical requirements of the Monitoring Center of the Ministry of Transport and the Product Quality Supervision and Inspection Center of the Ministry of Railways. They are especially suitable for highways, railways, tunnels, electric power, petroleum, chemical, municipal government and other projects. Ministry and other relevant departments and users unanimously praised.

Product Features

  • Good insulation and high strength
  • Resistance to corrosion and aging
  • Fire retardant
  • Good environmental adaptability
  • Light weight, easy installation


Installation of power cables for railway, highway, subway, tunnel and municipal construction

Electrical cable laying and fire protection in substation, petroleum, chemical industry, coal mine, large building and other environments

Installation Method

1. Before installation, set up brackets, the spacing should not be greater than 1500mm, generally made of angle steel.

2. Put the slot box on the bracket, and after the position is determined, you can drill through the cable duct box and the support frame with a hand electric drill on the position of the support frame, and then tighten it with bolts. Two holes are drilled on each support frame, the hole diameter is 10mm, Use two sets of M8 bolts.

3. Socket joints and joint cover plates should be used at the slot box joints to connect the two sections of cable slot boxes as a whole.

4. Use glass fiber reinforced plastic cable trough box elbow to connect with trough box at the bend.

5. The box cover and box body are fixed with plastic bolts and stainless steel bolts.

Product Specification

Length × width × height × thickness:  2-4m×300mm×100mm× 3mm,

Other specifications can be customized
