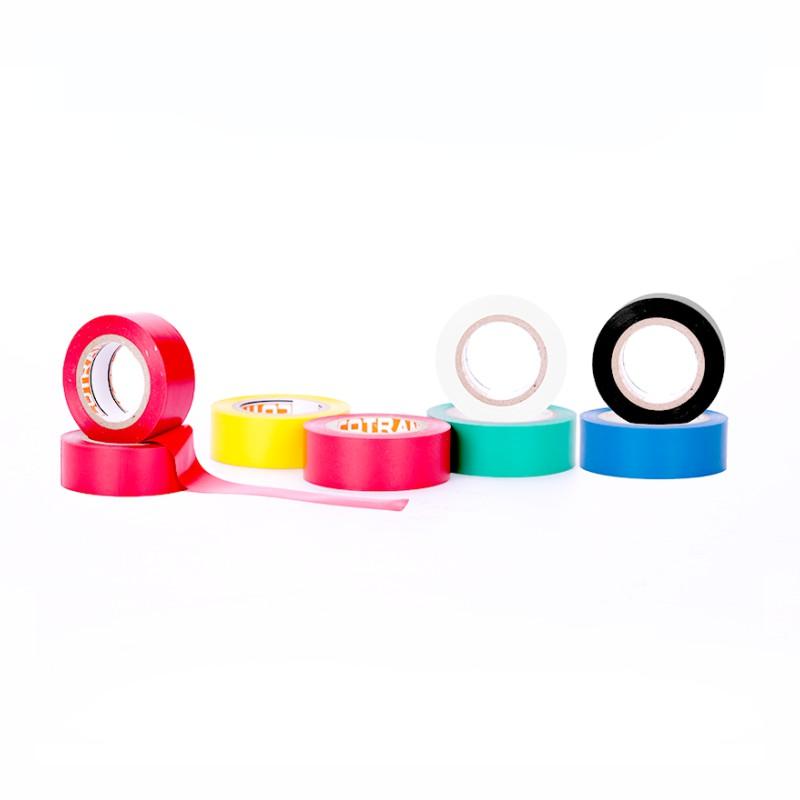

Color Coding Electrical PVC Tape KC61

◆ High tensile strength.

◆ High elongation.

◆ Good insulation property.

◆ Excellent electrical properties.

◆ Good shape retention.

◆ Operation and installation easily.

◆ RoHS 2011/65/EU(2015/863/EU)compliant.



Product Description

Cotran Brand KC61 Color Coding Electrical PVC Tape is made of a matte SPVC film coated with a rubber-based adhesive. High elongation, flame retardant, easy tear and excellent Conformability. Application for general electrical purpose and manual wiring harness.



Applications

◆ Suitable for use at not more than 600 V and at not more than 80°C (176°F) or an equivalent statement

◆ Protection and coding for outer sheath of high voltage cable joint

◆ Suitable for indoor and outdoor.

◆ Suitable for normal temperature range.

◆ Coding, binding, fixing, repairing, sealing, protection for kinds of industrial applications.




Test Parameters

No.

Test Item

Result

Test Method

1

Tensile Strength

36.7N/19mm

ASTM D1000

2

Elongation at Break

183%

ASTM D1000

3

Dielectric Strength

63Kv/mm

ASTM D4325

4

Adhesion (Steel plate)

3.42N/19MM

ASTM D1000

5

Volume resistivity

2.6x1012Ώ

ASTM-D1000

6

Ozone ageing

Pass

ASTM D4388

7

UVageing

Pass

ASTM D4325

8

Xenon ageing

Pass

ISO 4892-2

9

Working temp.

0℃~80℃




Note: This is typical value refer to Cotran KC61 SGS test report.


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
PVC Electrical Insulation Tape
Self Adhesive PVC Electrical Insulation Tape KC62

◆ High tensile strength.

◆ High elongation.

◆ Good insulation property.

◆ Excellent electrical properties.

◆ Good shape retention.

◆ Operation and installation easily.


Color-Coding PVC Electrical Tape

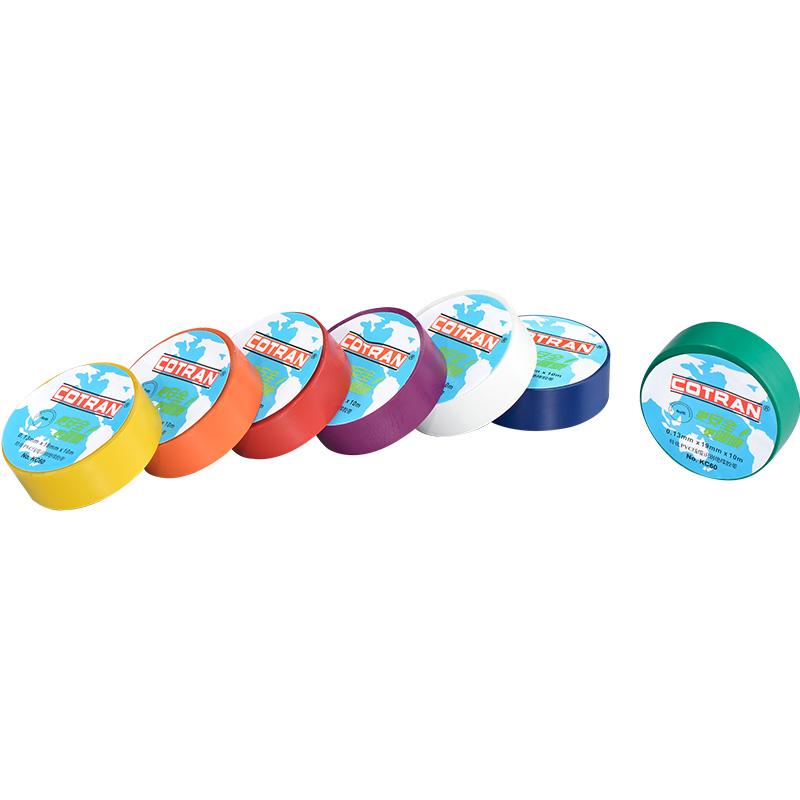

Premium Color Coding Electrical PVC Tape KC60
