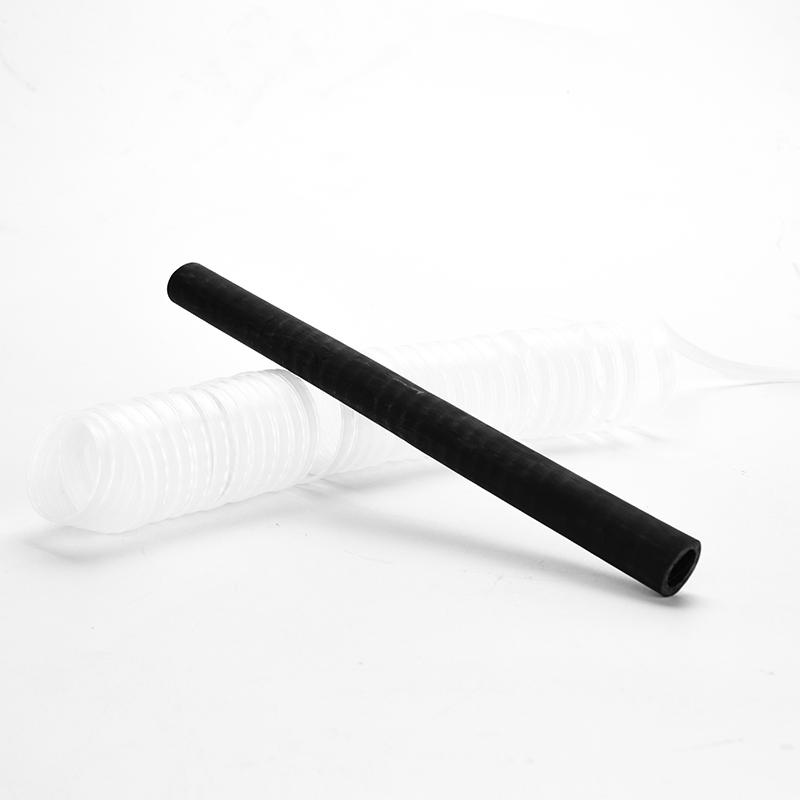

Cotran KC96 is an open-ended cold shrink ethylene propylene diene monomer (EPDM) rubber sleeve, which is factory pre-expanded and assembled onto a removable core. The core is removed when the tube is position for installation over an in-line connection or termination lug. It provides a water proofing tight for terminations and joints.
Applications
◆ Protection and repair for outer sheath of high voltage cable joint;
◆ Fire protection of cables and connectors;
◆For all base materials that need to be insulated against fire;
Property
|
Item |
Parameter and Result |
Test Method |
|
|
Waterproof |
Class |
Pass, IPX7 |
IEC 60529:1989+A1:1999+A2:2013； 1 meter depth in water, duration: 4 hours |
|
Physical and mechanical properties |
Shore Hardness |
A/37/1 |
ASTM D2240-15 |
|
Tensile Strength |
≥ 9.6MPa |
ASTM D412-15a Method A |
|
|
Elongation |
≥ 650% |
ASTM D412-15a Method A |
|
|
Tear Strength |
≥ 27 KN/m |
ASTM D624-00(2012) |
|
|
Electricity |
Dielectric Strength |
≥12 KV/mm |
ASTM D149-09(2013) Method A |
|
Material |
Environmental protection |
RoHS |
IEC 62321 |
Note: This is typical value under lab test, and refer to Cotran KC97 SGS test report.
Models
|
Model |
Color |
Cable Size(mm) |
Package |
|
KC96-Single |
Black (color can be customized) |
Design for 1/2” jumper (7/16 DIN) to Equipment |
50 pcs/carton |
|
KC96-Dual |
Black (color can be customized) |
Dual-Layerstructure,design for 1/2” jumper (7/16 DIN) to Equipment |
50 pcs/carton |
Installation Instruction
|
Step 1 |
|
|
1. Wrap the foam tape on the 1/2’’ cable to expand the application outline 2. Put jumper cable inside of the tube, before connectjumper to equipment 3. Arrow symbol will be direction of pulling strip, which usually should be downward |
|
|
Step 2 |
|
|
|
1. Hold the tube, pull stripdownward, and rolling,slowly by slowly 2. Whenpull the white strip till the plastic inner tube is horizontal alignment of the silicone rubber tube, hold cold shrink tube up and attached to bottom of connector on equipment, ensure the tube cover whole metal part of the connector. 3. Hold tube tightly to prevent tube moving, keep pulling strip downward, round and round, till all strip are out. |
|
Step 3 |
|
|
1. Hold the foam tape part tightly, clench several times toaccelerate foam tape attached on cables, help EPDM tube shrinking. |
