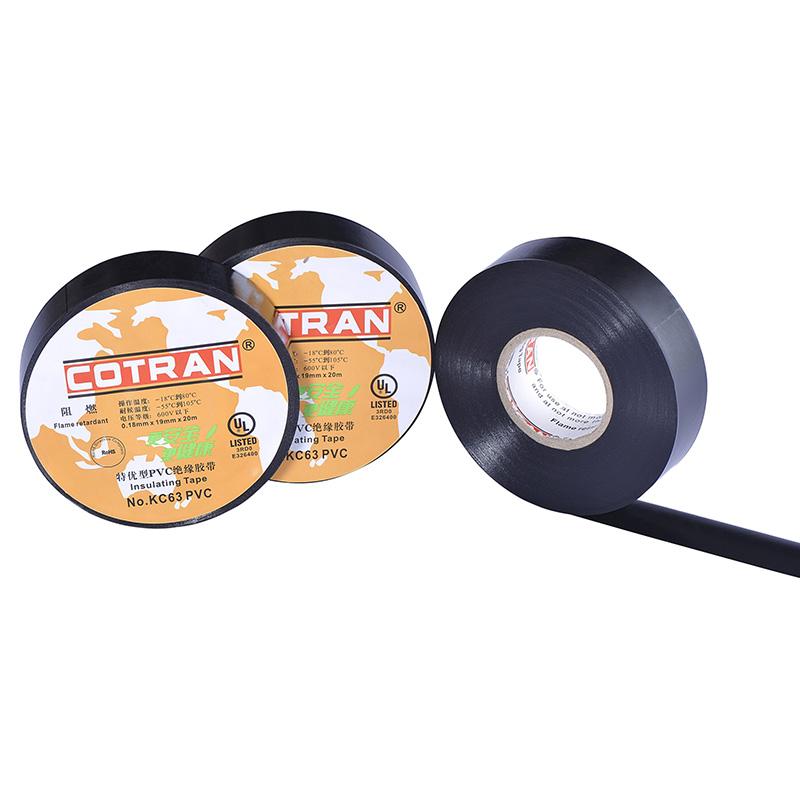

All-Weather Electrical PVC Tape KC63

◆ High tensile strength.

◆ High elongation.

◆ Good insulation property.

◆ Excellent electrical properties.

◆ Good shape retention.

◆ Operation and installation easily.

◆ High tensile strength and elongation rate.

◆ Good insulation property.

◆ Excellent electrical properties.

◆ Operation and installation easily.

◆ RoHS 2011/65/EU(2015/863/EU) compliant.

◆ various colors are available.

◆ High tensile strength.

◆ High elongation.

◆ Good insulation property.

◆ Excellent electrical properties.

◆ Good shape retention.

◆ Operation and installation easily.

◆ RoHS 2011/65/EU(2015/863/EU)compliant.

◆Large thermal dissipation area

◆High thermal dissipation efficiency

◆Low leakage risk and high reliability

◆Stable and high production efficiency

◆Reduce the weight of the battery pack

◆Low energy for single cylindrical battery

◆Improve the battery life and performance

◆Less pollution and environmental protection

Product Features
COTRAN automatic splice rated to hold a minimum 95% RBS of the Conductor used, can ensure quick and reliable overhead tension splice with fast and easy installation. The conductor simply slips into color-coded, funnel-shaped end piece and enters the pilot cap automatically with a simple push. The pilot cap guides the conductor to pass the set of serrated jaws and into the center of automatic splice.
Automatic splices are used on ACSR, AAC, AAAC conductor for an instant, positive and automatic connection, ANSI C119.4 Full Tension Class A connector.

Applications
Color-coded end piece provides instant visual identification of maximum conductor size
Funnel-shaped end piece quickly guides conductor into right position for insertion.
Pilot cap envelops strands and guides conductor pass serrated jaws and into splice center.
Precisely die-casted jaw provides optimum contact area for greater range of conductor sizes, reducing inventory stocking requirements.
Compressing stainless-steel spring positions jaws for positive conductor acceptance.
Tubular centers stop automatically determining proper insertion length of conductors.
High-strength, aluminum alloy tube covers connection for superior corrosion protection and lasting service life.

Enclosed is the instruction sheet, save time and eliminate potential for errors during installation.

Specification

Size	ACSR (mm2)	AAAC (mm2)	AAC (mm2)	A (mm)	B (mm)	Conductor Diameter Range in / (mm)
	ASTM-B232	ASTM-B399	ASTM-B231
AS4 (GL-402A)	16	16	16	349	21.2	0.229-0.265/(5.81-6.73)
AS2 (GL-404A)	25	25	25	349	21.2	0.265-0.335/(6.73-8.5)
AS42 (GL-4042A)	35	35	35	349	21.2	0.229-0.340/(5.81-8.63)
AS4210 (GL-406A)	50	50	50	413	29.2	0.280-0.397/(7.11-10.08)
AS1020 (GL-4076A)	70	70	70	413	29.2	0.365-0.475/(9.27-12.06)
AS30 (GL-408)	95	95	95	559	44.2	0.502-0.531/(12.75-13.48)
AS3040 (GL-4098)	120	120	120	559	44.2	0.502-0.585/(12.75-14.86)
AS40266 (GL-410)	150	150	150	559	44.2	0.532-0.641/(13.51-16.28)
AS266336 (GL-411)	150	150	150	559	44.2	0.580-0.724/(14.73-18.38)
AS397 (GL-412)	185	185	185	686	50.8	0.740-0.815/(18.80-20.7)
AS477 (GL-413)	240	240	240	820	56.9	0.810-0.881/(20.57-22.38)
AS636 (GL-414)	300	300	300	879	63.0	0.885-1.003/(22.48-25.47)

◆High production efficiency

◆Large thermal transfer area

◆High performance cost ratio

◆Rapid thermal cooling speed

◆Thin thickness to save space

◆Easy processing and shaping

◆Good thermal exchange effect

◆Low leak risk and high reliability

Product Applications COTRAN JJC series insulation piercing connectors are applicable for all types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system. installation of JJC can be easily done by tightening bolts to forceteeth penetrate insulation of main line and tap line simultaneously. Stripping of insulation is avoided for both lines. Feature Material: insulation material made of weather resistant polymer. Contact teeth made of tinned brass or copper or aluminum. Meet standard requirements: EN 50483-4, NF C33-020, NF C33-004 Specification Type Main line section (mm²) Branch section (mm²) rated current (A) Dimensions  (mm) Weight (g) Piercing Depth (mm) No. of bolts JJC888 0.75-6 0.75-6 41 21*27*23 10 1-1.5 1 JJC-1 1.5-25 1.5-10 55 27*41*62 55 1.5-2 1 JJC-2 16-95 1.5-10 55 27*41*62 55 1-2 1 JJC-3(A) 6-50 4-25 157 42*45*62 110 2.5-3.5 1 JJC-3 16-95 4-35(50) 157 46*52*87 160 2.5-3.5 1 JJC-4 50-150 6-35(50) 157 46*52*87 162 2.5-3.5 1 JJC-5 25-95 25-95 214 50*61*100 198 3-4 1 JJC-5-1 16-120 16-120 214 50*61*100 198 3-4 1 JJC-6 (35)50-150 (35)50-150 316 50*61*100 280 3-4 1 JJC-7 120-240 25-120 276 52*68*100 360 3-4 1 JJC-7-1 150-240 10-25 102 52*68*100 336 3-4 1 JJC-8 95-400 35-300 425 83*130*130 1050 5-6 2

◆ IPX7 class, stable and long life during operation;
◆ Easy to install, only three steps (Cover, pull and clench);
◆ Fast installation, only 15-30 seconds needed to seal one connection;
◆ No limitation of spare space, especially design for narrow space, high density connectors mounted equipment such as scenario of 3G and 4G combination site, multi-band antenna), also convenient to deploy on wall-mounted, high tower, pole-mounted condition etc;
◆ Easy to uninstall, only need knife to cut tube open;
◆ No skill required by engineers, uniform quality after installation, stable and good sealing and weatherproofing performance;
◆ Much time cost, and labor cost saving;
◆ Good operating capability under extreme cold and hot condition, highland, salt-mist situation, heavy windy weather, and anti-UV, anti-ozone;
◆ Widely deployed for telecom projects wherever in China domestic and oversea;
