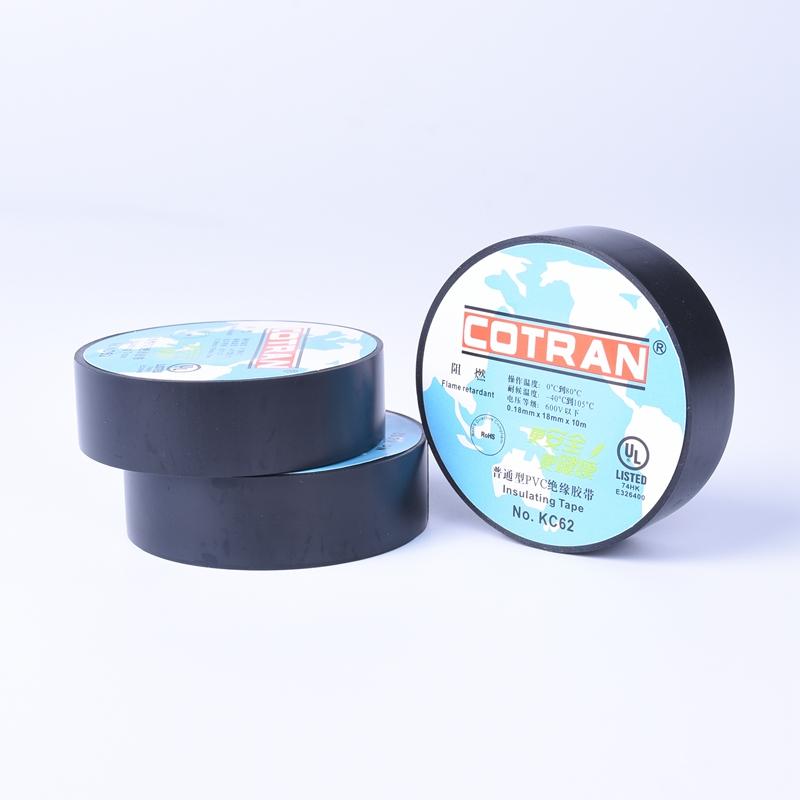

Self Adhesive PVC Electrical Insulation Tape KC62

◆ High tensile strength.

◆ High elongation.

◆ Good insulation property.

◆ Excellent electrical properties.

◆ Good shape retention.

◆ Operation and installation easily.


Product Description

Cotran Brand KC62 Quality Electrical PVC Tape is a high quality pressure sensitive PVC insulation tape. it consists of substrate and coated rubber, it has an excellent performance in shaping and electrical insulation. It is widely applied to all kinds of mechanical and electrical connector processing. KC62 is applied to wire and cable connector for main insulation voltage up to 600V.


Applications

◆ Electrical insulation for wire and cable joints up to 600V.

◆ Protection and repair for outer sheath of high voltage cable joint

◆ Suitable for indoor and outdoor.

◆ Suitable for normal temperature range.

◆ Binding, fixing, repairing, sealing, protection for kinds of industrial applications.



Test Parameters

No.

Test Item

Result

Test Method

1

Tensile Strength

50.2N/19mm

ASTM D4325

2

Elongation at Break

210%

ASTM D4325

3

Dielectric Strength

50.49Kv/mm

ASTM D1000

4

Adhesion (Steel plate)

4.4N/19MM

ASTM D1000

5

Volume resistivity

2.21x1011Ώ/25mm

ASTM-D4325

6

Ozone ageing

Pass

ASTM D1149

7

UVageing

Pass

ASTM D4325

8

Xenon ageing

Pass

ISO 4892-2

9

Working temp.

0℃~80℃




Installation

Cotran Brand KC62 Quality Electrical PVC Tape should be applied in successive half-lapped, level-wound layers until desired build-up is reached, just as following picture, the installation is very easy and sample.

Standard Packing info

Item Packing/Ctn Carton size GW/Ctn
KC62(18mm*0.18mm*20m) 100 41*17*22cm 9.3KG

Customization packing is available.
