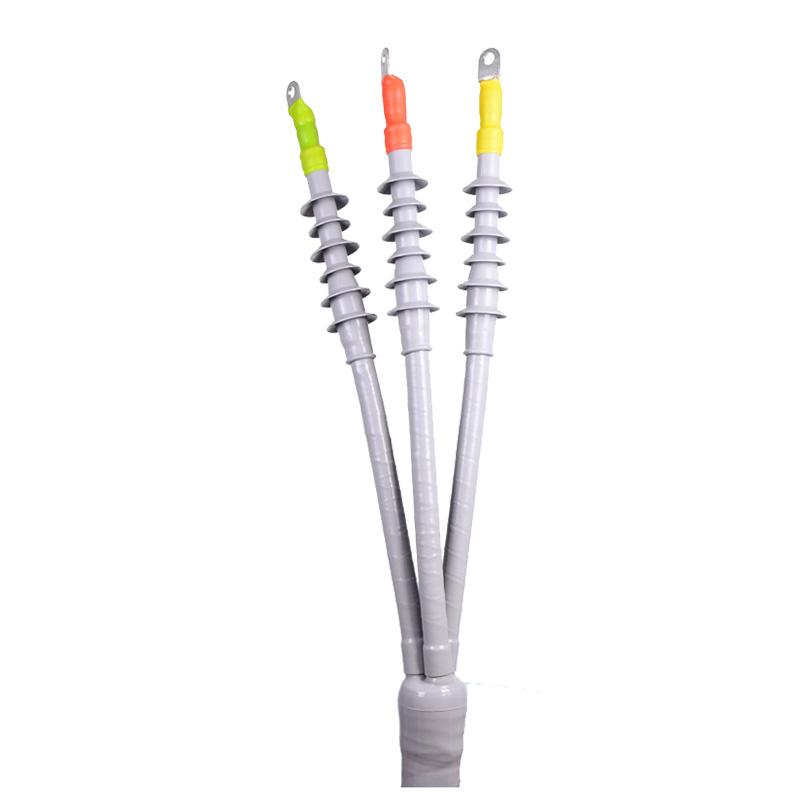

Main Kit Components
|
Termination body |
Cold shrink tubes |
Breakout |
Braid |
|
Spring roll |
Sealants |
Instruction |
|
Cold Shrink Straight Joints
Cotran cold shrink straight through joints are precisely designed to meet the parameters of international cable and cable accessories standards such as CENELEC HD 629.1 S1, IEEE-48 class 1, IEEE-404, IEC60502. Our cold shrink straight through joints offers reliable and consistent performance for longer service life. We have designed our cold shrink straight joints for single core and 3 cores extruded UA, SWA/STA, CWS/CTW cable through 36kV.
Main Kit Components
|
Joint body |
Metal shielding mesh |
Armor tape |
Waterproof tape |
|
Spring roll |
Spring roll |
Sealants |
Instruction |
Product Features
- Safety: Without using torches or any auxiliary tools.
- Stability: The geometric stress cone and insulator of cold-shrink terminations keep the active pressure and steady long-term operation to cable.
- Wide usage: Applying to high-altitude area, cold area, humid area, salt mist area and seriously polluted area.
- Small size: Smallish cold-shrink terminations can minimize stripping distance effectively.
Technical Properties
|
Property |
Typical data |
|||
|
15kV(8.7/15kV) |
24kV ( 12/20kV) |
30kV (18/30kV) |
36kV (26/35kV) |
|
|
AC withstand(under rain) |
35KV/1min |
48KV/1min |
72KV/1min |
104KV/1min |
|
AC withstand(without rain) |
39KV/1min |
54KV/1min |
81KV/1min |
117KV/1min |
|
Impulse withstand |
±95KV/10times |
±125KV/10times |
±170KV/10times |
±200KV/10times |
|
DC withstand |
35KV/15min |
48KV/15min |
72KV/15min |
104KV/15min |
|
AC withstand |
35KV/4h |
48KV/4h |
72KV/4h |
104KV/4h |
|
Partial discharge test |
10Pc(1.73Uo) |
10Pc(1.73Uo) |
10Pc(1.73Uo) |
10Pc(1.73Uo) |
Selective Chart
|
Product |
Specification |
Size of Conductor |
||
|
15kV(8.7/15kV) |
24kV (12/20kV) |
(mm2) |
||
|
3-cores indoor termination kit |
CT-15-LN-3/1 |
CT-24-LN-3/1 |
25-50 |
|
|
CT-15-LN-3/2 |
CT-24-LN-3/2 |
70-120 |
||
|
CT-15-LN-3/3 |
CT-24-LN-3/3 |
150-240 |
||
|
CT-15-LN-3/4 |
CT-24-LN-3/4 |
300-400 |
||
|
CT-15-LN-3/5 |
CT-24-LN-3/5 |
500-800 |
||
|
3-cores outdoor termination kit |
CT-15-LW-3/1 |
CT-24-LW-3/1 |
25-50 |
|
|
CT-15-LW-3/2 |
CT-24-LW-3/2 |
70-120 |
||
|
CT-15-LW-3/3 |
CT-24-LW-3/3 |
150-240 |
||
|
CT-15-LW-3/4 |
CT-24-LW-3/4 |
300-400 |
||
|
CT-15-LW-3/5 |
CT-24-LW-3/5 |
500-800 |
||
|
3-cores straight through joint |
CT-15-LJ-3/1 |
CT-24-LJ-3/1 |
25-50 |
|
|
CT-15-LJ-3/2 |
CT-24-LJ-3/2 |
70-120 |
||
|
CT-15-LJ-3/3 |
CT-24-LJ-3/3 |
150-240 |
||
|
CT-15-LJ-3/4 |
CT-24-LJ-3/4 |
300-400 |
||
|
CT-15-LJ-3/5 |
CT-24-LJ-3/5 |
500-800 |
||
|
Single core indoor termination kit |
CT-15-LN-1/1 |
CT-24-LN-1/1 |
25-50 |
|
|
CT-15-LN-1/2 |
CT-24-LN-1/2 |
70-120 |
||
|
CT-15-LN-1/3 |
CT-24-LN-1/3 |
150-240 |
||
|
CT-15-LN-1/4 |
CT-24-LN-1/4 |
300-400 |
||
|
CT-15-LN-1/5 |
CT-24-LN-1/5 |
500-800 |
||
|
Single core outdoor termination kit |
CT-15-LW-1/1 |
CT-24-LW-1/1 |
25-50 |
|
|
CT-15-LW-1/2 |
CT-24-LW-1/2 |
70-120 |
||
|
CT-15-LW-1/3 |
CT-24-LW-1/3 |
150-240 |
||
|
CT-15-LW-1/4 |
CT-24-LW-1/4 |
300-400 |
||
|
CT-15-LW-1/5 |
CT-24-LW-1/5 |
500-800 |
||
|
Single core straight through joint |
CT-15-LJ-1/1 |
CT-24-LJ-1/1 |
25-50 |
|
|
CT-15-LJ-1/2 |
CT-24-LJ-1/2 |
70-120 |
||
|
CT-15-LJ-1/3 |
CT-24-LJ-1/3 |
150-240 |
||
|
CT-15-LJ-1/4 |
CT-24-LJ-1/4 |
300-400 |
||
|
CT-15-LJ-1/5 |
CT-24-LJ-1/5 |
500-800 |
||
|
