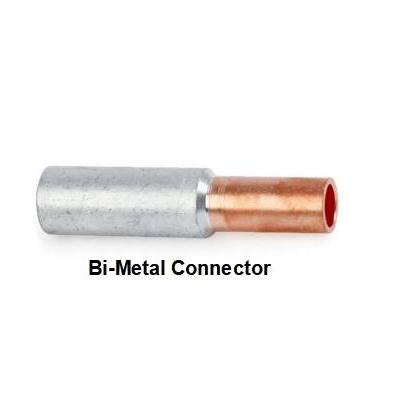

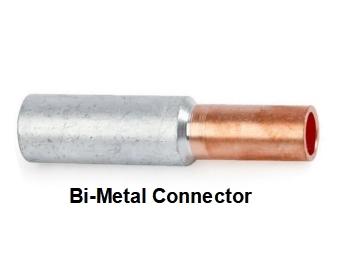

Bi-Metal Lug & Connector

Applications：

It's used for fixing the shielding of low voltage and medium voltage cable joints and terminations.

Applications：

The Separable Connector establishes the connection between any polymeric insulated cable onto transformers, switchgears, motors or other equipment.

Applications：

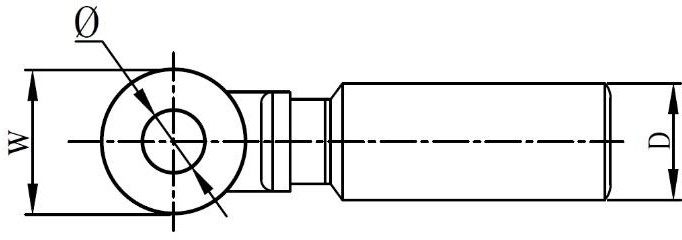

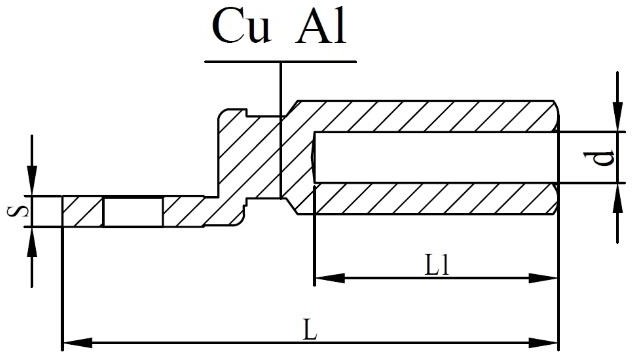

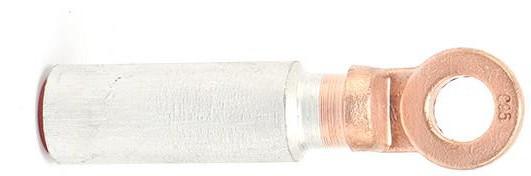

Cable lugs are suitable for the conjunction of wires, cables in the distribution equipment and the electrical equipment. DT series of copper connecting terminals with copper cable, DL series of aluminum connecting terminals with aluminum cable.

Applications：

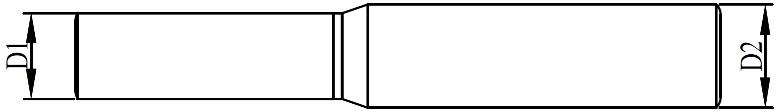

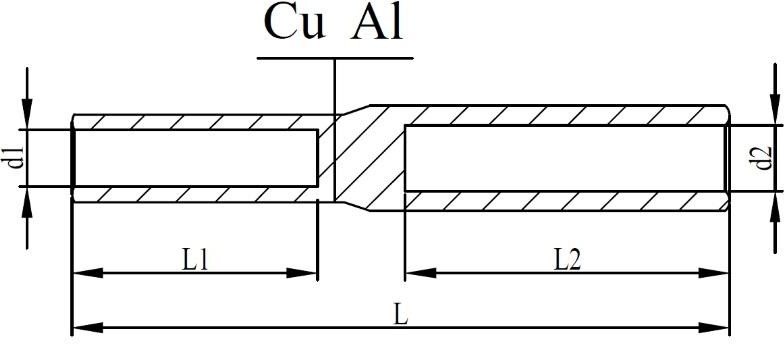

Cable Connector are applicable to connect the circular wires and cables. GT series of copper connectors are used for copper cable connections, GL series of aluminum connectors are used for aluminum cable connections.

The shear bolt connectors are intended for stranded and solid aluminum and copper cable, low voltage and medium voltage up to 36 kV.

They comprise cable areas 10-400 mm² even bigger for sector cable. There is also a screw sleeve for branches up to a total of 100 mm². The joint with the conductor is achieved by the screws in the connector or terminal being tightened to a predetermined torque.

Product Applications COTRAN JJC series insulation piercing connectors are applicable for all types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system. installation of JJC can be easily done by tightening bolts to forceteeth penetrate insulation of main line and tap line simultaneously. Stripping of insulation is avoided for both lines. Feature Material: insulation material made of weather resistant polymer. Contact teeth made of tinned brass or copper or aluminum. Meet standard requirements: EN 50483-4, NF C33-020, NF C33-004 Specification Type Main line section (mm²) Branch section (mm²) rated current (A) Dimensions  (mm) Weight (g) Piercing Depth (mm) No. of bolts JJC888 0.75-6 0.75-6 41 21*27*23 10 1-1.5 1 JJC-1 1.5-25 1.5-10 55 27*41*62 55 1.5-2 1 JJC-2 16-95 1.5-10 55 27*41*62 55 1-2 1 JJC-3(A) 6-50 4-25 157 42*45*62 110 2.5-3.5 1 JJC-3 16-95 4-35(50) 157 46*52*87 160 2.5-3.5 1 JJC-4 50-150 6-35(50) 157 46*52*87 162 2.5-3.5 1 JJC-5 25-95 25-95 214 50*61*100 198 3-4 1 JJC-5-1 16-120 16-120 214 50*61*100 198 3-4 1 JJC-6 (35)50-150 (35)50-150 316 50*61*100 280 3-4 1 JJC-7 120-240 25-120 276 52*68*100 360 3-4 1 JJC-7-1 150-240 10-25 102 52*68*100 336 3-4 1 JJC-8 95-400 35-300 425 83*130*130 1050 5-6 2

Applications：

Specially developed chemical formulation provides effective insulation screen on the high voltage cable connectors.

◆High production efficiency

◆Large thermal contact area

◆Uniform and stable welding

◆Rapid thermal cooling speed

◆Thin thickness to save space

◆Easy processing and shaping

◆Good thermal exchange effect

◆Low leak risk and high security
