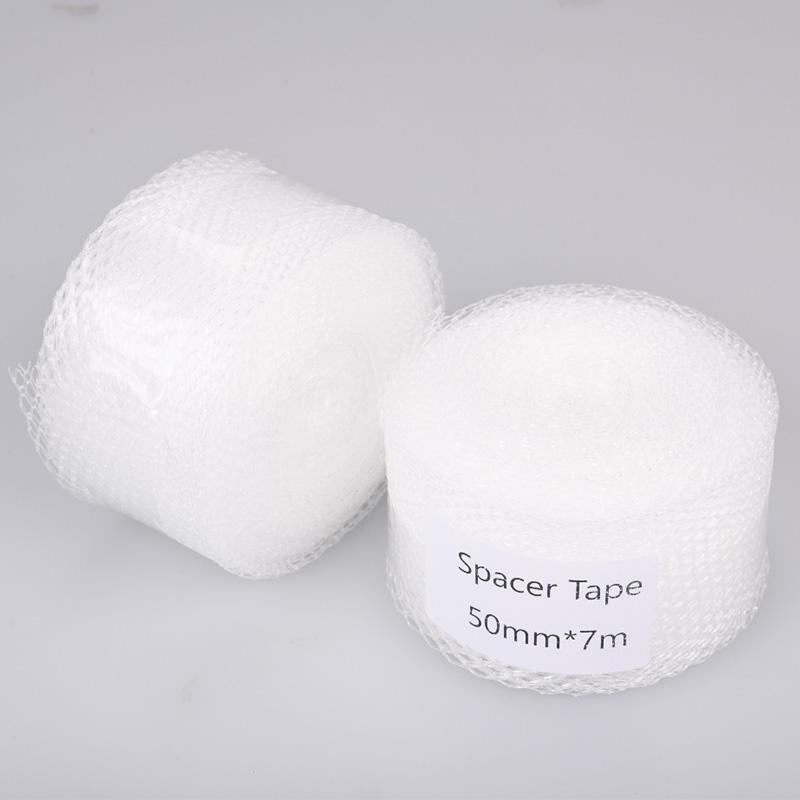

Spacer Tape

COTRAN spacer tape is extruded into two crossed threads that can then divert liquids, leading to its wide usage for casting resin joints in different applications, such as Low- and Medium Voltage, Cable Accessories and 2-component epoxy or PUR Cast Resins. It is engineered to build up voids in odd shaped splices and assures full resin coverage and forms a liquid tight mold.

Inquiry now

product introduction

Specification

Specification	Color
30 mesh, mesh size: 4.5*4.5mm	Natural or as you require

Width × Length: 50mm × 7m;

Packing information: 150 rolls/carton

Note: other size is available on request

Storage

COTRAN spacer tape should be stored in original packaging, placed in horizontal position under cover and in a humidity controlled storage (5°C to 35°C and <75% relative humidity).

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Tags :

Related products

Inflatable Duct Sealing System for Power Cable (IDSS)

The inflatable duct sealing system (IDSS) is a wraparound, inflatable mastic-lined bladder used to seal empty or filled cable ducts. When inflated to proper air pressure, the IDSS seals the duct, guaranteeing a reliable water block. The IDSS can be installed in cable ducts in manhole, vaults, buildings, cabinets, or anywhere a reliable duct seal is needed. Application include ducts containing multiple copper, coax, or fiber cable, customer premise cable entrance, and air pipes. IDSS can be installed between -40℃ to 75℃.

Oil Resistant Filling Mastic

Applications:

To provide oil resistance, void filling and sealing for oil-immersed cable termination and joints for heat shrink technology up to 36kV.

KC58 Epoxy Glass Fiber Electrical insulating Tape

KC58 epoxy glass fiber electrical insulating tape is a strip of insulating binding material of a certain width, impregnated with a high temperature heat curing epoxy resin by a unidirectional, continuous twist, alkali-free glass fiber yarn after treatment. This tape has good softness and viscosity, opened in a network structure, easy to roll back, no loose wire, no overlap. The product has high strength, impact resistance, high modulus, low elongation, no hysteresis and no eddy current loss and other excellent properties.

KC6001 Non-solidified Sealing Mastic

KC6001 is a kind of butyl rubber mastic, with good viscosity, high temperature resistance (105℃), cold resistance (-40℃), waterproof insulation, never dry and other excellent properties. The product does not contain volatile organic compounds, environmental protection, safety, non-corrosive, suitable for switch cabinets, ring network cabinets, electrical joints, high-speed railway, subway, light rail and other waterproof sealing filling and insulation, easy to form, especially suitable for irregular structure of internal and external sealing.

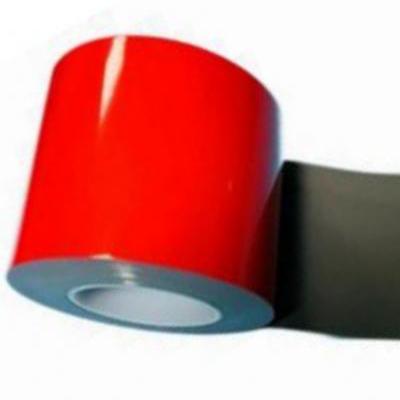

KC9229 Acrylic Foam Tape

KC9229 acrylic foam tape is a kind of high viscosity fully closed hole acrylic tape made of special acrylic adhesive process. Fully closed cell structure and viscoelasticity give this tape, moisture-proof, water-proof, dust-proof, shock absorption, sound insulation, joint filling and other effects, plastic, metal, wood, paper and silicone and other difficult to stick, uneven surface has a good adhesive effect.

The product maintains good durability in high, low temperature and high temperature and high humidity environment; Excellent adhesion fixing effect for high and low surface energy materials.

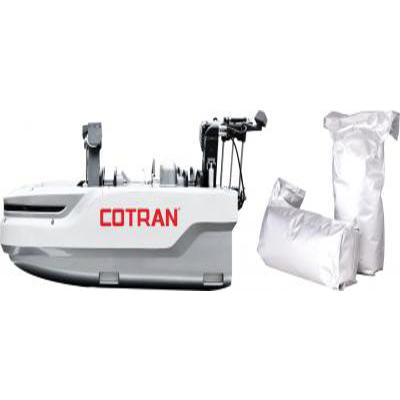

Robotic Coating Tornado X526
