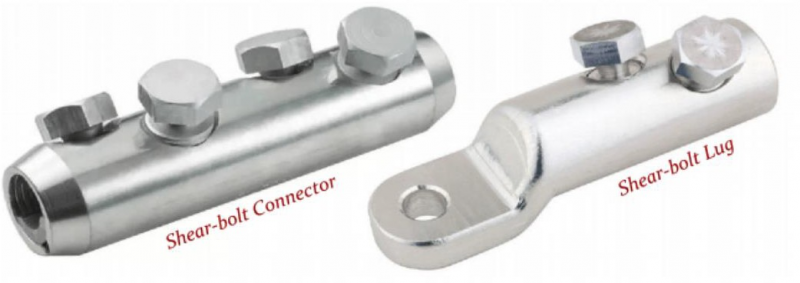

Shear bolt Connector&Lug

The shear bolt connectors are intended for stranded and solid aluminum and copper cable, low voltage and medium voltage up to 36 kV.

They comprise cable areas 10-400 mm² even bigger for sector cable. There is also a screw sleeve for branches up to a total of 100 mm². The joint with the conductor is achieved by the screws in the connector or terminal being tightened to a predetermined torque.

Inquiry now

product introduction

Specification:

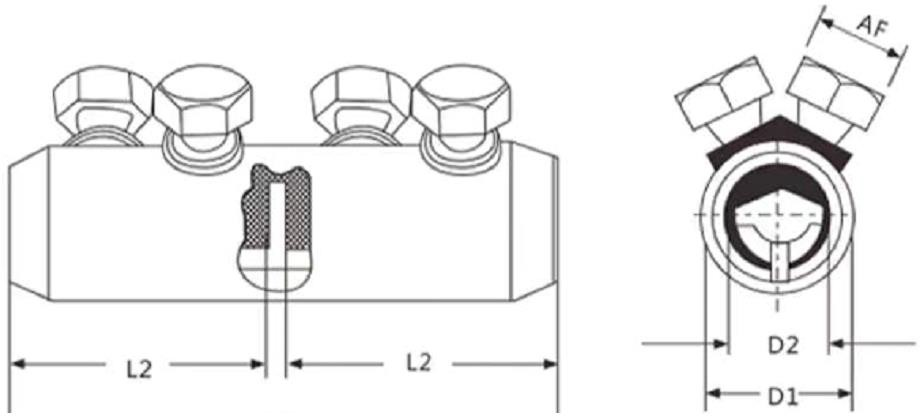

Item	Cross section	D1	D2	L1	L2	Bolt QTY	Bolt Size AF
AMB10/35	10-35	19	8.5	45	20	2	13
AMB25/95	29-95	24	12.8	65	30	2	13
AMB35/150	35-150	28	15.8	80	35	2	17
AMB95/240	95-240	33	20	125	60	4	19
AMB120/300	120-300	37	24	140	65	4	20
AMB185/400	185-400	42	25.5	170	80	6	22
AMB 500/630	500-630	46	30	190	90	6	27
AMB 630/800	630-800	50	33	200	95	6	13
AMB 800/1000	800-1000	60	40.5	230	110	8	13

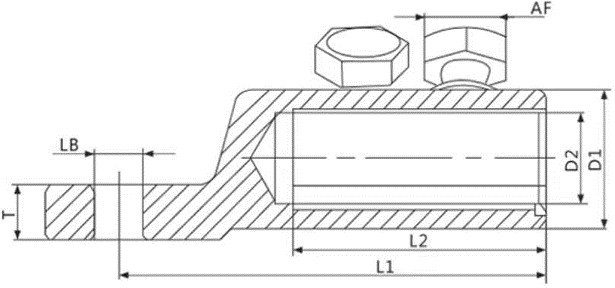

Item	Cross section	D1	D2	L1	L2	LB	Bolt QTY	Bolt Size AF
BLMT-25/95-13	25-95	24	12.5	60	30	13	1	13
BLMT-35/150-13	35-150	28	16	86	35	13	1	17
BLMT-95/240-13	95-240	33	20	112	60	13	2	19
BLMT-120/300-17	120-300	37	24	115	65	13	2	22
BLMT-185/400-17	185-400	42	25.5	137	80	17	3	22
BLMT-500/630-21	500-630	50	33	150	95	21	3	27
BLMT-630/800-17	630-800	61	40.5	180	105	17	4	19
BLMT-800/1000-17	800-1000	60	40.5	153	86	17	4	17
BLMT-1500-17	1500	65	46	200	120	17	4	19
