Silicone Cold Shrink Tube With Mastic KC97

◆ High elastic silicone rubber tube structure with mastic built-in, dual layers design can bring double guarantee of
◆ weatherproofing protection;
◆ IPX8 class, stable and long life during operation;
◆ Easy to install, only three steps (Cover, pull and clench);
◆ Fast installation, only 15-30 seconds needed to seal one connection
◆ No limitation of spare space, especially design for narrow space, high density connectors mounted equipment  such as scenario of 3G and; 4G combination site, multi-band antenna), also convenient to deploy on wall-mounted, high tower, pole-mounted condition etc.,
◆ Easy to uninstall, only need knife to cut tube open and no sticky mastic left;
◆ No skill required by engineers, uniform quality after installation, stable and good sealing and weatherproofing performance;
◆ Much time cost, and labor cost saving;
◆ Perfect SWR performance approved by telecom operators;
◆ Good operating capability under extreme cold and hot condition, highland, salt-mist situation, heavy windy weather, and anti-UV, anti-ozone;
◆ Widely deployed for telecom projects wherever in China domestic and oversea;

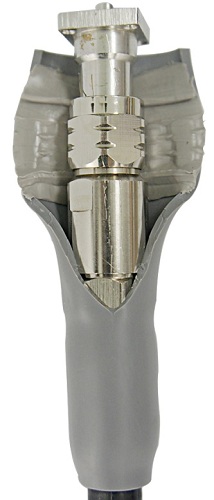

KC97 cold shrink tube is designed for weatherproofing protection on connections between jumper cable and connector (7/16 DIN, N type or 4.3-10) of wireless equipment, such as RRU, Antenna and Microwave. Comparing with tape sealing protection, KC97 cold shrink tube’s installation is much shorter (15-30 seconds), convenient installation, uniform appearance for acceptance.


Applications

1. Widely used in communication base station coaxial cable, N type joints and 1/2 jumper, Din connector and 1/2 jumper connector waterproof sealing
2. Waterproof and moistureproof TV cable joint sealing
3. The insulating sealing connecting wire and cable
4. The insulating sealing protection of other types of connections


Property

Item

Parameter and Result

Test Method

Waterproof

Class

Pass, IPX8

IEC 60529:1989+A1:1999+A2:2013;

1 meter depth in water, duration: 4 hours

Physical and mechanical properties

Shore Hardness

A/41/1

ASTM D2240-15

Tensile Strength

9.42 MPa

ASTM D412-15aMethod A

Elongation

960%

ASTM D412-15aMethod A

Tear Strength

41.6 KN/m

ASTM D624-00(2012)

Excessive Mastic Test

Pass

No excessive mastic

Pull out the support tube, and place sample at room temperature horizontally, after 72h, inspect whether the mastic excess or not

Adhesion Test

Pass

Built-in mastic was all attached on the inner wall of sample

Use sharp knife to cut sample open, then inspect whether the mastic attached on the inner wall of samples or not.

Brittleness temperature by impact

Pass

ASTM D746-14,-60℃

Drop test

Pass

No damage, deformation, and support tube could be pulled out normally

Drop from height 1.2m on tile floor surface, 3 times to test

Flammability

Horizontal burning

HB

UL 94-2013 Rev.6-2016 Section 7

Electricity

Dielectric Strength

24.4 KV/mm

ASTM D149-09(2013) Method A

Performance under harsh environment

Mechanical and waterproof properties

No crack, discoloration, damage or deformation,

IPX8 Pass



1. Dry heat test (IEC 60068-2-2:2008 Test Bb): 90±2℃,168 hours;

2. Low temperature test (IEC 60068-2-1:2008Test Ab): -40±2℃,168 hours;

3. Thermal cycling test: Cycle time:12h/cycle, Cycle index: 10 cycles, Total duration: 120 hours;

4. Damp heat test, cyclic test (IEC 60068-2-30:2005 Test Db):Cycle time:24h/cycle, Cycle index: 10 cycles, Total duration: 240 hours;

5. Damp heat test, steady state (IEC 60068-2-78:2012 Test Cab):Temperature: 75±2℃, Humidity:(95±1) %RH, Total duration: 1000 hours

Aging test

Light aging test-UV exposure

No crack, discoloration, damage or deformation

Grey scale: 4-5

IPX8 Pass

ISO 4892-3:2016Cycle1& ISO 105-A02:1993/Cor.2:2005

Lamp type: UVA-340, 8h UV at (60±3)℃ BPT,0.76W/(m²×nm)@340nm

4h condensation at(50±3)℃ BPT

Exposure duration:1000 hours

Ozone aging

No crack, discoloration, damage or deformation,

IPX8 Pass

ASTM D1149-16 Method B procedure B1

Temperature: 40±1℃

Ozone concentration:50±5 pphm

Exposure duration: 72 hours

Material

Environmentalprotection

RoHS

Reach

IEC 62321

SVHC

Temperature

Installation temperature

-40℃ - 60℃

Refer to “mechanical properties” and “performance under harsh environment”

Operation temperature

-60℃ - 90℃

Stock temperature

-60℃ - 90℃

Note: This is typical value under lab test, and refer to Cotran KC97 SGS test report.


Specification

Model

Color

Application

Package

KC97-DIN

Black, grey

(color can be customized)

7/16 DIN connector to 1/2-inch jumper

50 pcs/carton

KC97-4.3-10

Black, grey

(color can be customized)

4.3-10 connector to 1/2-inch jumper

N type connector to 1/2-inch jumper

50 pcs/carton

KC97-7/8

Black,grey

(color can be customized)

7/8-inchfeeder to 1/2-inch jumper

50 pcs/carton


Installation instruction

Step 1




1. Put jumper cable inside of the tube, before connectjumper to equipment

2. Arrow symbol will be direction of pulling strip, which usually should be downward

Step 2




1. Hold the tube, pull stripdownward, and rolling,slowly by slowly

2. Whenpull the white strip till the plastic inner tube is horizontal alignment of the silicone rubber tube, hold cold shrink tube up and attached to bottom of connector on equipment, ensure the tube cover whole metal part of the connector.

3. Hold tube tightly to prevent tube moving, keep pulling strip downward, round and round, till all strip are out.

Step 3

1. Hold the mastic part tightly, clench several times toaccelerate mastic attached on connector and jumper, help silicone rubber tube shrinking.

Remind




           Pull Direction




 Mount Position
