EPR Electrical Semi-conducting Tape KC72

◆ Can be used to repair XLPE cable terminations and joints or shielding for other devices up to 110kV.

◆ Retains its conductivity when stretched.

◆ Semi-conducting (low resistivity).

◆ Suitable for irregular shapes cable with good elongation.

◆ Withstand high temperatures (130°C/266°F) short-term overload.

◆ Compatible with all solid dielectric cable insulations and conductors.

◆ Resistance to ozone, solvents, UV, xenon exposure and moisture.

◆ Suitable for indoor or outdoor applications.

◆ Operation and installation easily.

◆ Increases its conductance and will not harm it in any way.

Inquiry now

product introduction

Product Description

Cotran Brand KC72 electrical semi-conducting tape is a Highly conformable, self-fusing, semi-conducting ethylene

propylene rubber(EPR) based, high voltage splicing tape. KC72 is used for repairing of XLPE cable terminations

and joints or shielding for other devices up to 110kV.

Applications

◆ Uniform electric field in high electric field, to minimize electrical stresses in

◆ Continue semi-conducting strand shielding found in solid dielectric cables above 5kV.

◆ Provide shielding layer for solid dielectric insulated cable.

◆ Repair the semi-conducting layer beneath metallic shield of similar cables in case of damage

◆ Make conductive portion of stress cone of power cable termination on solid dielectric insulated cables.

Test Parameters

No.	Test Item	Result	Test Method
1	Color	Black
2	Thickness	0.76mm	ASTM D4325
3	Tensile Strength	＞1.73MPa	ASTM D4325
4	Elongation at Break	＞935%	ASTM D4325
5	Water absorption	0.19%	ASTM D570-98
6	Volume resistivity	＜7x10⁶Ώ.cm	ASTM-D4325
7	Heat ageing(130℃ 168H)	Pass	ASTM D4325
8	UV ageing	Pass	ASTM D4325
9	Xenon ageing	Pass	ISO 4892-2

Installation

Cotran Brand KC72 electrical semi-conducting tape is usually wrapped in half-lapped layers. With excellent elongation, stretched overwrapping the connectors, terminals, and metallic shield of power cable.

Step 1 Wipe off the dusts on the power cable area before wrapping.

Step 2 Remove the liner and stretch the tape to 1 to 2 times of its original length, apply the tape in 50%-lapped toward area to the wrapped. Stretching the tape to 4 times of its original length is not recommended.

Step 3 Overwrapping the electrical semi-conducting tape on the power cable on the needed area.

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : EPR Electrical Semi-conducting Tape KC72

Tags :

Related products

EPR High Voltage Insulation Tape KC71

◆ Can be used to splice and terminate cable, the emergency overload temperatures can reach 130℃.

◆ Based on Ethylene Propylene Rubber(EPR).

◆ Physical and electrical properties are unaffected by the degree of stretch.

◆ Self-fusing tape.

◆ Excellent electrical properties.

◆ A special polyester liner which will not stick to the tape upon unwind.

◆ Operation and installation easily.

◆ Compatible with all solid dielectric cable insulation:

Polyethylene (high and low density).

Cross-linked polyethylene (XLPE).

Polyvinyl chloride (PVC).

Butyl rubber.

Anti-condensation Moisture-controlling Tablets KC4000

Excellent hygroscopic performance, hygroscopic capacity can reach more than 80% of its own weight, sustainable moisture absorption in high humidity environment.

Can be used for a long time, the effect of performance does not decay

With excellent softness, light weight, installation is not limited by the environment, easy to use

At the same time has the function of moisture absorption, moisture release, maintain stable humidity

It can also be used normally under zero temperature and does not harden

Non-toxic environmental protection, can be directly discarded as ordinary garbage

Non-corrosive, no corrosion when in contact with the equipment in the cabinet

Reusable

KC6001 Non-solidified Sealing Mastic

KC6001 is a kind of butyl rubber mastic, with good viscosity, high temperature resistance (105℃), cold resistance (-40℃), waterproof insulation, never dry and other excellent properties. The product does not contain volatile organic compounds, environmental protection, safety, non-corrosive, suitable for switch cabinets, ring network cabinets, electrical joints, high-speed railway, subway, light rail and other waterproof sealing filling and insulation, easy to form, especially suitable for irregular structure of internal and external sealing.

Flexible Fireproof and Explosion-proof Blanket KC9001

KC9001 Flexible fireproof and explosion-proof blanket is suitable for the outer wrapping of the cable straight joint. It adopts multi-layer protective structure to cover the cable straight joint. The outer layer is made of ablation-resistant fireproof cloth with built-in flexible nano thermal insulation sheet and high strength aramid fiber cloth. When the fire broke out, the built-in can flexible nano can get insulation sheet is 3 ~ 4 times of that of the traditional performance, at the same time the highest heat resistance is above 1200 ℃, and it has excellent flame retardant and heat insulation effect, and the built-in high strength aramid fiber cloth can avoid the middle joint breakdown exploded the harm of adjacent cables, avoid the secondary damage caused by the fire. KC9001 light flexible fireproof blanket is easy to install, and it can be easily installed outside the cable intermediate connector after construction by means of pre-installed fire-resistant tie belt and D-type ring clasp without other tools.

Super Thin Waterproof Waterseal Mastic Tape T28

◆ Continuous waterproofing;
◆ Ultra-thin;
◆ Good tensile strength;
◆ Highly self-fusing tape;
◆ Suitable for irregular shapes cable;
◆ Resistance to high/low temperature;
◆ Resistance to corrosion;
◆ Resistance to ozone, UV, xenon exposure;

Metal Composite Fireproof Board KC8000

KC8000 is a metal composite fireproof board with heated expansion property, it is composed of stainless steel plate, fire layer, wire mesh, aluminum foil, totally four layers of structure.

Heat Shrink Anti tracking Insulation Tube (1~36kV)

Applications：

Used to provide insulation protection for cable terminal, load-break switches, power circuit breakers, etc.

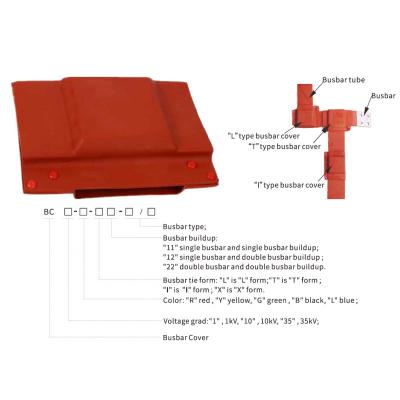

Insulating Busbar Cover Protection up to 11 KV, 24KV, 36KV
