All-Weather Electrical PVC Tape KC63

◆ High tensile strength.

◆ Flame retardant.

◆ High elongation at break.

◆ The back is rubber pressure-sensitive adhesive with good initial viscosity and bonding strength.

◆ Excellent electrical properties.

◆ Withstand high/low temperature.

◆ Operation and installation easily.

Inquiry now

product introduction

Product Description

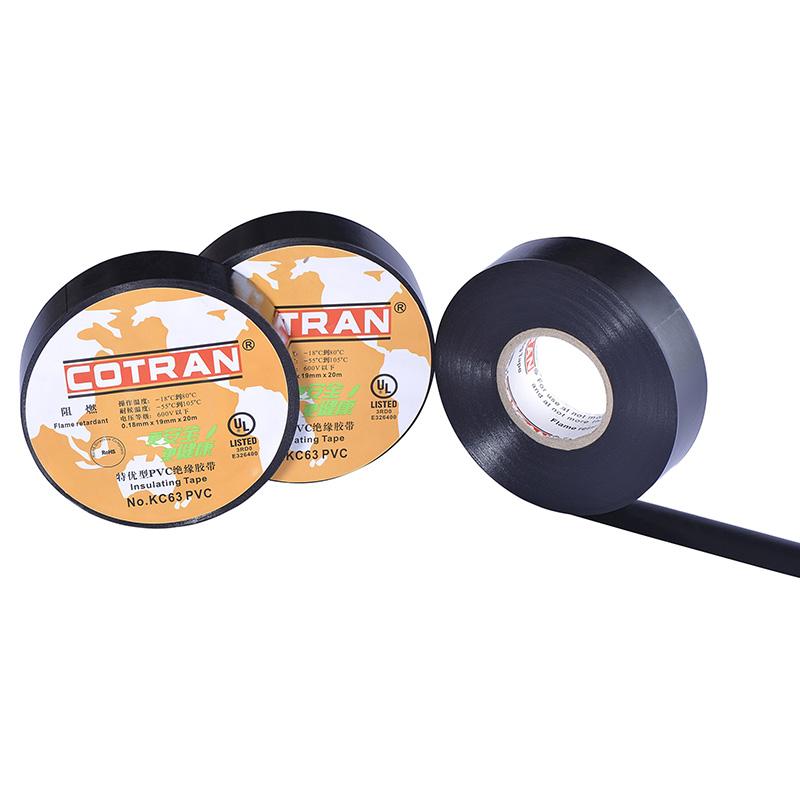

Cotran Brand KC63 All-Weather Electrical PVC Tape is a premium grade, all-weather, vinyl-insulating, comfortable,

pressure sensitive PVC tape, it is composed of the high elastic base material and pressure-sensitive adhesive. It shows

superior performance at low and high temperature.

KC63 provides moisture-tight electrical and mechanical protection with rating voltage up to 600V.

Applications

◆ Electrical insulation for wire and cable joints up to 600V.

◆ Protection and repair for outer sheath of high voltage cable joint

◆ Suitable for indoor and outdoor.

◆ Suitable for high and low temperature.

◆ Binding, fixing, repairing, sealing, protection for kinds of industrial applications.

Test Parameters

No.	Test Item	Result	Test Method
1	Tensile Strength	69.5N/19mm	ASTM D4325
2	Elongation at Break	280%	ASTM D4325
3	Dielectric Strength	47.28Kv/mm	ASTM D1000
4	Adhesion (Steel plate)	6.82N/19MM	ASTM D1000
5	Volume resistivity	2.76x1011Ώ/25mm	ASTM-D4325
6	Ozone ageing	Pass	ASTM D1149
7	UVageing	Pass	ASTM D4325
8	Xenon ageing	Pass	ISO 4892-2
9	Working temp.	-18℃~105℃
10

Installation

Cotran Brand KC63 All-Weather Electrical PVC Tape should be applied in successive half-lapped, level-wound layers until desired build-up is reached, just as following picture, the installation is very easy and sample.
