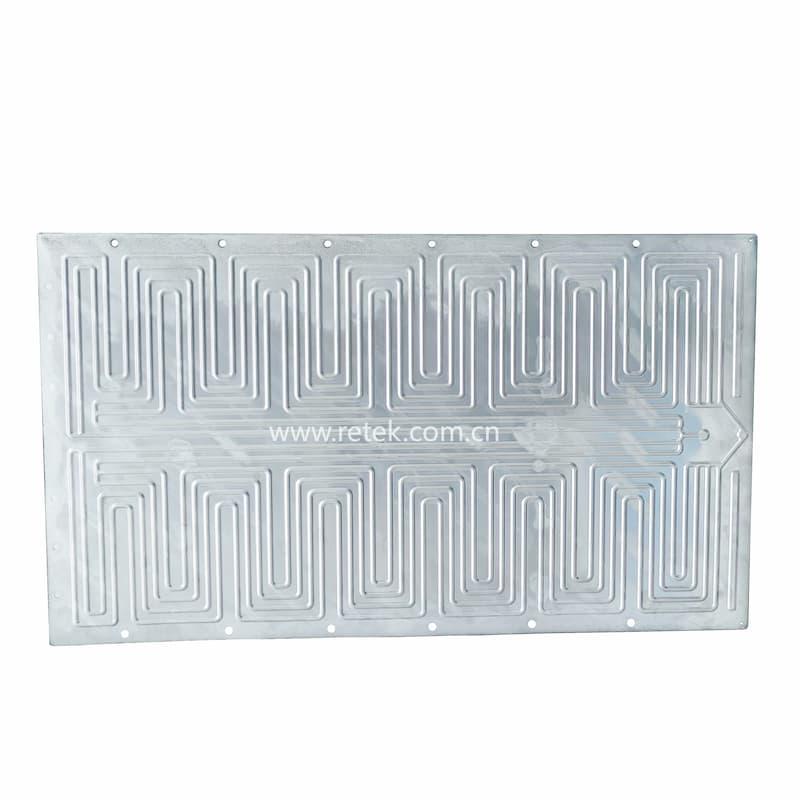

The cooling code of the aluminum electric automobile battery liquid cooling plate is that the heat of the battery core is transferred to the liquid tooling plate through the thermal conductive silica gel sheet.The heat is carried way by the free circulation of thermal expansion and contraction to make the temperature of the battery pack uniform. The strong specific heat capacity absorbs the heat generated during the operation of the cell, allowing the entire battery pack to operate at a safe temperature.
Specification
|
Item Name |
Aluminum electric automobile battery liquid cooling plate |
|
Base Material |
AL3003, AL3003MOD or customized aluminum plate |
|
Product Size |
Customized size, Lmax 2,600MM, Wmax 1,800MM |
|
Product Thickness |
0.8~3.5MM or customized |
|
Deformation Pressure |
≥0.2 Mpa |
|
Burst Pressure |
≥1.0 Mpa |
|
Residual Impurity |
≤15 Mg/L |
|
Product Composition |
Flat plate, runner plate, waterconnectors |
|
Main Process |
Stamping, brazing, helium leak detection, flatness check, insulation coating |
|
Annual Capacity |
900,000 PCS based on product size 1,500X2,000MM |
|
Quality Certificate |
IATF16949, ISO9001, ISO14001, ISO45001 |
|
Main Application |
New Energy Vehicle, Electric Vehicle (EV), Energy Storage System (ESS) |
Advantages
◆ Own professional R&D team with rich experience in the new energy thermal management and product technology.
◆ Provide OEM/ODM service to design finalization and optimization according to different requirements from clients.
◆ Provide sample service and complete samples within about three weeks.
◆ Have own overall production line and process, most advanced equipment and high production automation, which can assure the good quality of products.
◆ Conduct technology innovation, R&D investment and laboratory construction.
◆ Expand production lines and increase capacity to meet delivery time of increased orders from various clients.
