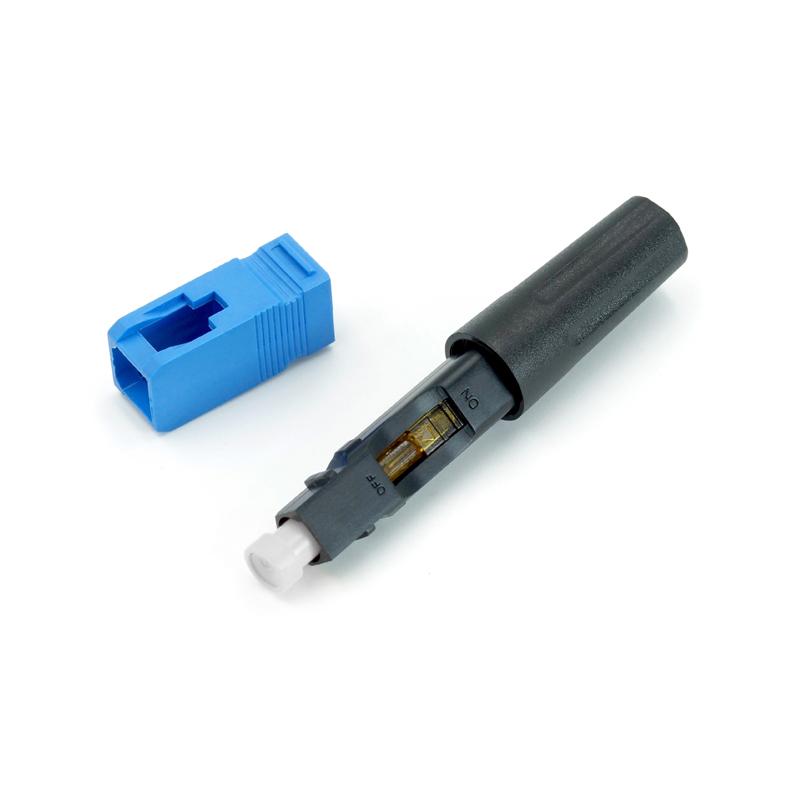

Fiber Optical Push-in Fitting Connector (PIF50-B)

Fiber Optical Push-in Fitting Connector (PIF50-B) is an easy and fast installation connector, which take the advantage of the well-designed fast assembly technology. The PIF50-B Connector provides high-quality mechanical and optical performance which meet or exceed the performance of factory-installed fiber optic connectors.

Specification:

Applicable for

2.0 x 3.0 mm drop cable

0.9, 2.0, 3.0mm circular optical fiber cable

Insertion Loss

≤ 0.3 dB

Return Loss

UPC ≥ 50 dB    APC ≥ 55 dB

Reusability

≥ 10 times

Pull Off Force

≥ 40 N

Working Temperature

-40℃~ 80℃

Mechanical Durability

IL ≤ 0.2 dB     RL ≤ 5 dB

Drop-off Test

IL ≤ 0.2 dB     RL ≤ 5 dB


Advantage:

a) Easy assembly on site and in field

b) Fast installation, no skill required

c) No extra tools invested, no need fiber fusion splicing machine

d) Avoid long and unnecessary patch cord and solve problem of fibers winding, improve maintenance and management efficiency

e) Save cost of +60% fiber drop cables, improve fiber cable utilization and reusability

f) Easy and convenient fiber cable management

g) Reliable quality, easy operation and maintenance


Solution and Application:

a) Fiber Distribution System:

b) Fiber Distribution Unit

c) Fiber Cable Joint Enclosure

d) Fiber Optical Patch Panel

e) FTTx Fiber Drop, Leather Fiber Cable
